Data acquisition
The capabilities of the Q.series X extend well beyond conventional DAQ; features like intelligent data filtering, data reduction algorithms, IIoT edge computing, and real-time control for automation make the Q.series X the most versatile data acquisition system available on the market.

The Q.series X controller, Q.station X, connects up to 64 mixed-signal measurement modules with up to 8th order filtering or up to 16 analog input channels sampling at 100 kHz and up to 32 virtual variables (e.g., RMS, Avg, Alarm, etc.). This large capacity per Q.series X DAQ system is possible due to its  5 UARTS (4 for data transfer, 1 for configuration) with a data transfer rate of 48 Mbaud per UART. The 5th UART is to enable reconfiguration during DAQ operation.

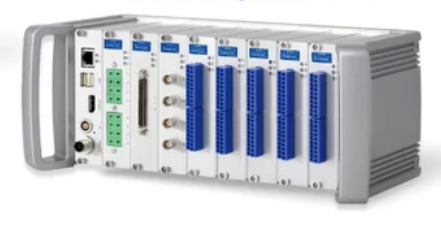

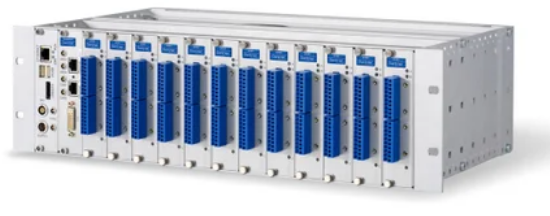

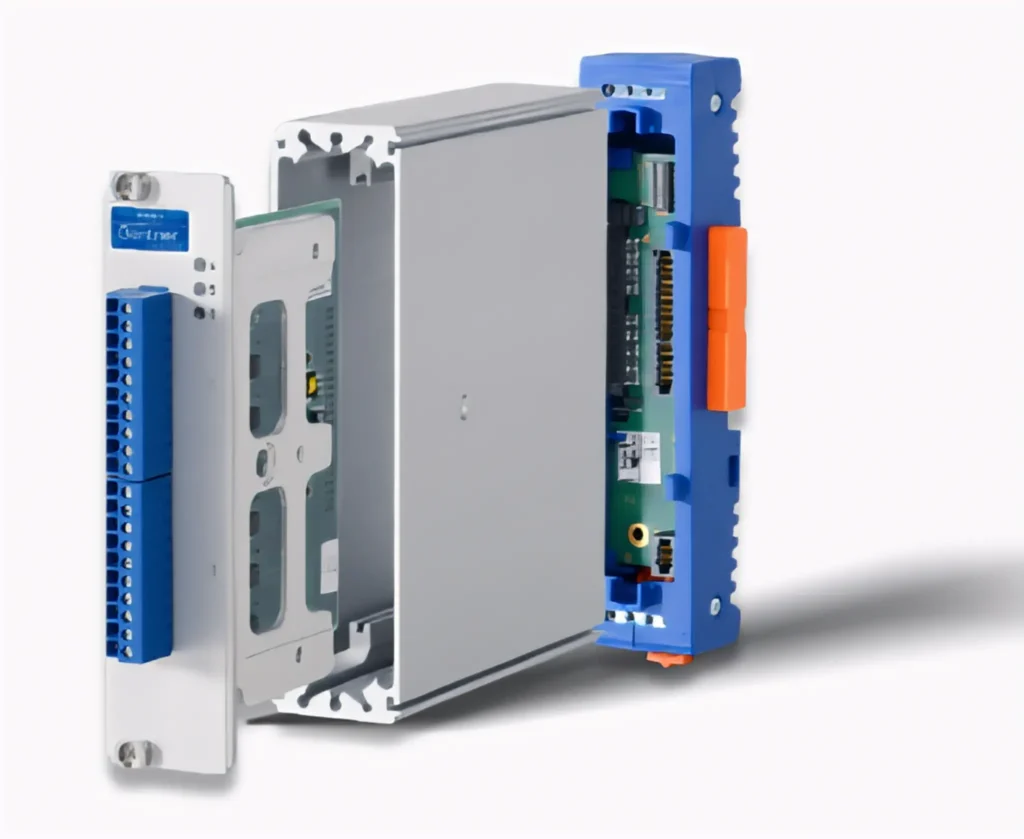

But the flexibility does not stop there: Q.series X I/O modules feature front plates with fully customizable sensor connectors, increasing efficiency and safety for all applications. Q.series X is also intelligently designed to have interchangeable enclosures: DIN rail, Rugged & Portable, 1U/3U 19” racks, and be space-saving, where single wide controllers and modules are only 35mm wide on DIN rail.
