Telemetry products IPC Teknik Aps offers a wide range within telemetry products for wireless transformission of measurement signals from roating or inaccesible measuring points. We sell telemetry equipment from Knaus Messtechnik GmbH

Link to technical information

telemetri industri udvikling overvågning

TEL1-PCM-IND 1 channel 12 bit

Telemetri trådløs overførsel
For rotating shafts. Measurement with strain gaunge. Full and half bridge configuration. Inductive transmission of signal. Max distance: 25 mm. (Option 35 mm.) Output: 0..10V (4.. 20mA)
PDFmærkat– PDF

TEL1-PCM-FLEX-IND

telemetri trådløs overførsel KMT Tele1-PNC-Flex-Ind IPC Teknik
Has the same electrical data ac TEL 1-PCM, but the transmitter is extremely flat and flexible. Max height 2mm, minimum bend radius of 15 mm
PDFmærkatPDF

T1-PCM-IND 1 channel 16 bit

Telemetri industri trådløs overførsel
For rotating shafts. Measurement with strain gauge (Full or half bridge) or PT100 sensor. Inductive signal transfer. Max distance: 30 mm. (Option 35 mm.) Output: 0..10V (4..20mA)

PDFmærkatPDF



MT 32 Multi channel telemetry system for roating application

telemetri trådløs overførsel industri
Up to 32 kanaler, 12 bit resolution. Input for strain gauges, termoccouple type K or current signal. Udgang: +- 5V. Compact design, supply via battery or inductive.
PDFmærkat– PDF



MTP-PCM Multi-channel telemetry system for rotating applications

telemetri trådløs overførsel industri Multi-channel telemetry system for rotating applications

2-64 channels, 16 bit, signal bandwidt 0-24000Hz. Full software programmable. Inputs for STG, TH-K, ICP og Volt. Output analog +/- 10 V Digital data interface to PC. Inductive or battery power

PDFmærkat-PDF

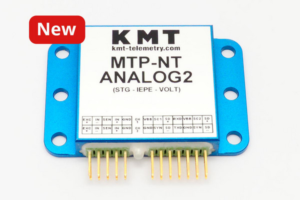

MTP-NT Multi-channel telemetry system for rotating applications

Telemetri industri test
2-256 channels, 16 bit ADC, signal, Indput for STG, Volt, Termo. Water protected.  Analog/ Digital Ethernet output +/- 10V • STG Input ranges ±40 to ±0.3 mV/V. Fully software programmable.
PDFmærkat -PDF

CTP 4/8/16 Multi-channel sensor telemetry system.

Telemetri industri trådløs overførsel
For rotating or point-to-point applications. Input for strain gauges, TH-K, ICP or Volt. 16 bit. Output +/- 10 V.

PDFmærkat– PDF

R16-PCM

Telemetri test
Replace slip-rings. 16 channels, Full- and half bridge. Auto Zero Offset-kalibrering · Gain 125-250-500-1000-2000. 16 bit. Output analog/ digital Ethernet +/- 10V. Signal bandwidth: 16x 0-6000Hz. Water protected.
PDFmærkat -PDF

CTP4/8-Wheel

telemetri trådløs overførsel industri
Telemetry system for use on 4 / 8 wheel channel. Input for strain gauges, termocouple K, current, potentiometer and +-5V eller +- 10V signals. 16 bit solution +- 10V resolution (option PC Interface)
PDFmærkat -PDF



CTP16-Rotate

telemetri trådløs overførsel industri
Telemetry system for roating application whit 16 channels. Inputs for STG, TH-K, ICP or Volt. 16 bit. Battery power op to 10 h.
PDFmærkat  – PDF



CTP32-Rotate

Telemetri industri
Telemetry system for rotating applications whit 32 channals. Inputs: strain gauge, TH-K, ICP eller Volt. Outputs: analog +/- 10 V. 16 bit.
PDFmærkat– PDF

CT2 Mini

telemetri trådløs overførsel industri
Compact telemetry system for two channels. Input for strain gage, termocouple type K, +-5V eller +- 10V. Output: +- 5V eller PC Interface. 12 bit resolution. Range up to 500 meter.
PDFmærkat  – PDF
