Loadcells from Thames Side

Weighing instruments from Rinstrum

  vejeinstrumenter rinstrumlogovejeceller, Thames side logo



Load cells and accesories:
  • Compression load cells
  • Tension load cells
  • Bending load cells
  • Shear beam load cells
  • Singlepoint load cells
  • Silo brackets
  • Junction Boxes
  • Cabels
We offer solutions in industrial weighing. At the same time, we can deliver equipment for approved weighing according to OIML R76 regulations.

We offer an extensive range in weighing instruments and messuring amplifiers. Application areas are many. For example platform scales, silo and tank weighing, counting scales, batch weighing, dosing systems, recipe weighing and equipment for truck scales.

Link to technical information from Thames side            Link to techical information from Rinstrum

vejecelle Levermount
Levermount Silo        assemblies. Capacity 200 kg – 5 ton

PDFmærkat – PDF

vejeinstrument R320
R320 weight indicator. Digitale inputs/outputs

PDFmærkat – PDF

vejeceller

T85 Shear Beam load cell. Capacity                300 kg – 10 ton

PDFmærkat – PDF

vejeinstrumenter
R323 weight indcator in stainless steel. Other data as R320

PDFmærkat – PDF

vejecelle beslag LA350
LA85 Anti vibrations mounth for harsh industrial environments. Capacity 300 – 5000 kg

PDFmærkat -PDF

vejeinstrument remote display
D730 Remote display. Isolatet RS232/RS485 serial input. Size of digits 75 mm

PDFmærkat -PDF

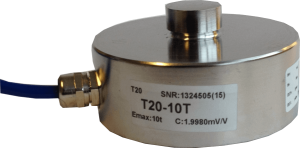

   vejeceller
T20 Compression load cells. Capacity 2,5 ton – 30 ton

PDFmærkat -PDF

vejeinstrument
X320 weight indicator. For extremely hard environmental conditions

PDFmærkat  -PDF

Vejecelle T20 beslag
Cell assembly for T20. Low profil, lift off fuse. Capacity 2,5 ton – 30 ton

PDFmærkat  – PDF

vejeinstrumenter
R420 For varius weight systems. Filling Weight, batch weighing, recipe weighing…

PDFmærkat – PDF

       vejeceller
T66 Bending beam cell. Capacity 5 kg – 500 kg

PDFmærkat – PDF

vejeinstrumenter
R423 weight indicator in stainless steel. Other data as R420

PDFmærkat – PDF

Vejecelle LA66
LA66 Anti vibrations bracket to T66 loadcell

PDFmærkat – PDF

vejeinstrumenter udbygning
Expandable using moduls to different interface

PDFmærkat – PDF

       vejecelle mastermount

Mastermount. Assamly for silo. Capacity 2 ton – 30 ton

PDFmærkat – PDF

Vejeinstrumenter
R323   built in stainless cabinet. IP67

PDFmærkat – PDF

      vc 3500 vejecelle
VC3500. Load celle assembly for tank and vessel weighing. Capacity 2-200 ton

PDFmærkat -PDF



——————————————————————————

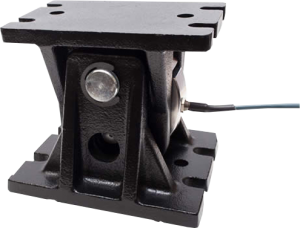

              T95 vejecelle
T95 Loadcel. Where movement or vibration is pressent.        Capacity 2 – 20 ton

PDFmærkat -PDF

Vejeinstrument
TL729 Weighing Instrument. 5-digit 25 mm display. Separate connection to up to 8 weighing cells. Programmable analogue output (I/O)

PDFmærkat -Datasheet          -Manual

                                             vejeceller, vejeudstyr, brovægt

T34 Compression column loadcell for weighbridges. Capacity 15 ton – 60 ton

PDFmærkat – PDF

——————————————————————————

T34 vejecelle vejebroer, vejeudstyr, brovægt

T34 Comresssion column for weighbridges. Capacity 10 – 60 ton

PDFmærkat -PDF

vejeceller



     vejcelle til silo trykvejecelle

T34 Silo. Compressum column load assemble for silo weighing. Capacity fra 10 – 1000 ton

PDFmærkat -PDF

T65 Tryk / træk vejecelle
T 65 S – type            Compression / Tension loadcelle. Capacity from 50 – 3000 kg

PDFmærkat -PDF

   T60 Tryk / træk vejecelle
T60 S- type Compression / Tension loadcelle. Up to 150°C. Capacity fra 50 – 6000kg.

PDFmærkat -PDF

      T68 vejeceller, vejeudstyr s-type

T68. S-type Compression / Tension loadcell in stainless steel. Up to 150 ºC. IP68 / TP69K. Capacity from 250 – 7500kg

PDFmærkat -PDF

     Tryk træk vejecelle

T 61 S – type                Compression / Tension loadcelle. Capacity from 50 – 1000 kg. Up to 150°C.

PDFmærkat -PDF

vejecelle T11, vejeudstyr single point

T 11 Single point        loadcelle. Capacity from 15 – 150 kg

PDFmærkat -PDF
